LPG loading arms

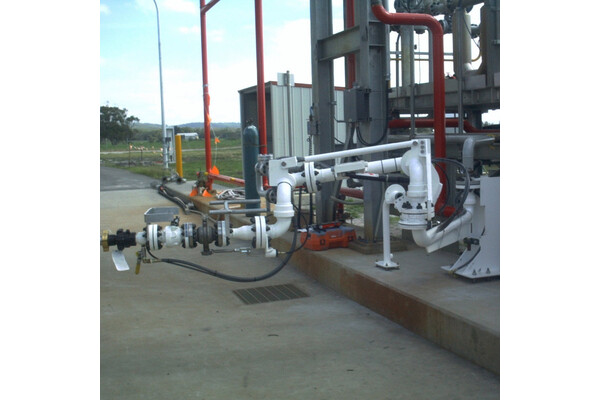

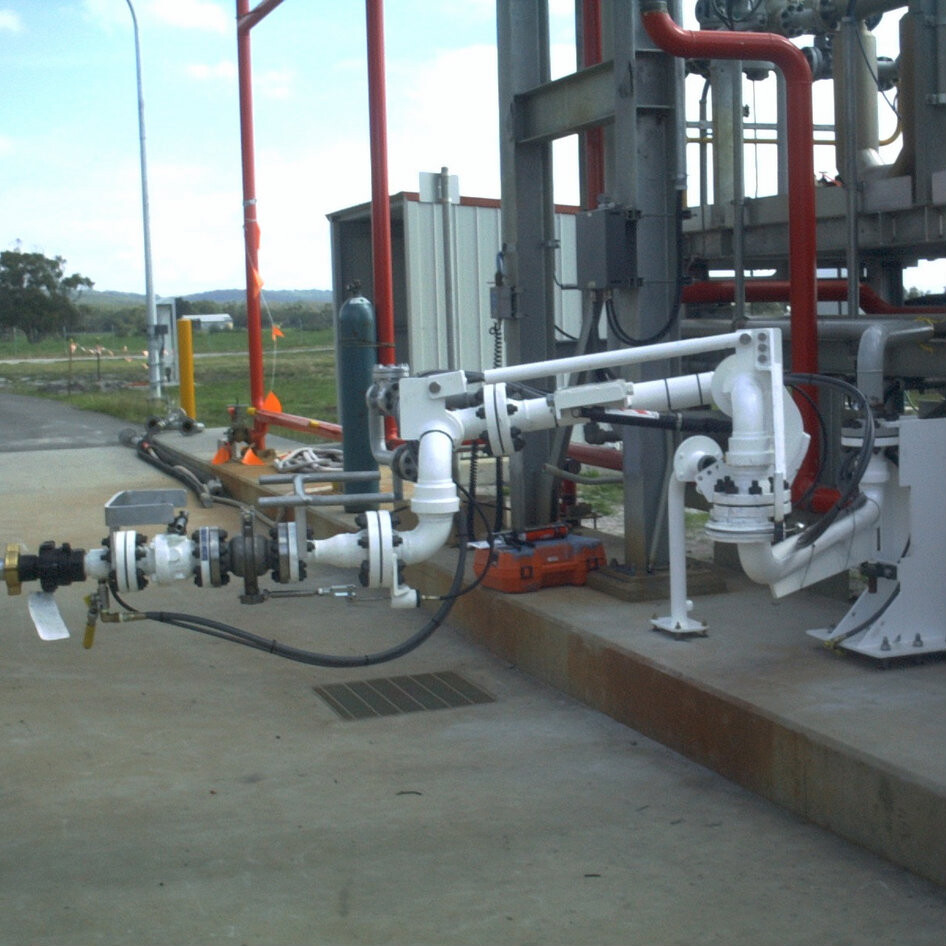

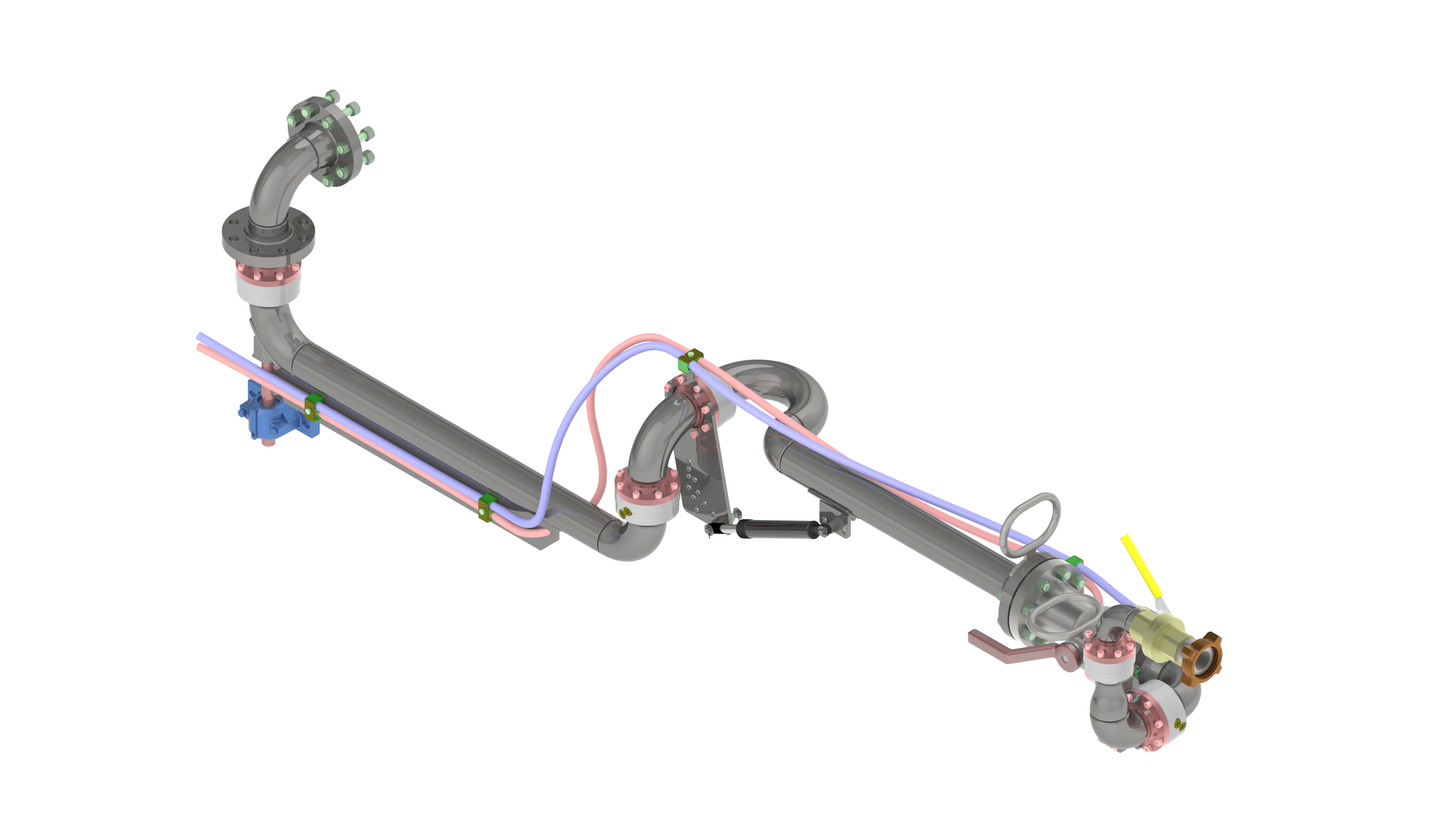

Liquip offers a custom designed low profile loading arm for LPG (Liquefied petroleum gas).

The highly advanced 3" Liquip LPG loading arm is designed to provide efficient loading with an emphasis on occupational healthy and safety.



Features & Benefits
  • High pressure swivels enable loading up to 120m3/hr.
  • LPG arms fold away for safe compact storage.
  • Electronic interlocks ensure the arm is disconnected and stowed.
  • Replaces the need for heavy and hard to handle liquid loading hoses.
  • Remote draining valve to empty final pipe section of liquid before disconnection.
  • Parallelogram linkage to hold outboard pipe section horizontal at all times.
  • ​Uses Liquip's unique gas strut "Velvet Touch" technology.

Recommended products for replacement

    Categories
    Technical Information

    Materials
    -All pipework & flanges are ASTM Standard for high-pressure use.
    -    Swivel bearing surfaces are nitrided for hardness & seals are Teflon.
    -    Gaskets spiral wound metal.

    Mounting
    Inlet flange 80mm diameter ANSI 300 raised face flange.
    Optional free-standing mounting pillar available, rated to moment of 500kg.m.
    Optional parking stand with proximity sensor also available.

    Drive away protection
    Double acting stainless steel emergency release dry-break coupling to protect against accidental drive-away of tanker with arm still attached.

    Process Data
    Designed for LPG from 0.5 to 0.6 s.g., 0.11cP viscosity, 2,000 litres/minute.
    Design pressure 2,400 kPa, test pressure 3,600 kPa.
    Design temperature +60°C to –30°C.
    Normal working conditions 1,200 kPa max pressure and 0°C to 40°C temperature range.

    Typical weight
    Approx 150kg.

    Ordering Information

    Loading arm survey forms are available for users to fill out. Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the Liquip website. Click here to obtain a login.

    Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

    Associated Equipment

    Low Profile loading components

    • Primary arm with base swivel.
    • Balance assembly.
    • Gas struts
    • Secondary arm.
    • Double plane, coupler swivel assembly.
    • Multiple couplers options.
    • Butterfly valves.
