Relief Valves
Civacon Pressure Relief Valves are designed specifically for the Dry Bulk Cargo Tank Industry.
Civacon’s RV-2 & RV-3 Series Pressure Relief Valves are tailor made for the unique needs of the Dry Bulk transport Industry. If a line blockage should occur, these valves are designed to prevent equipment damage by venting to the atmosphere once their set pressure is exceeded. Model configurations are available for all installation and pressure setting needs.
For pressure applications please contact Liquip regarding approvals.
Features & Benefits
- 2” and 3” Opening insuring non-constricted air flow
- Quick cam lock available in the 2” model
- Oversized exhaust holes to prevent clogging during discharge of dry material
- Available with high temperature rated materials providing protection up to 450° F
- O-Ring seal on valve seat ensures a tight seal and an inexpensive replacement
- Available in fixed or adjustable pressure settings, 5-30psi.
- Tamper proof seals
- Each valve is tested to 100% of its rated pressure
- NPT thread
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
 |
RV-2100 | 2” Female Thread Pressure Relief Valve Adjustable Buna N Diaphragm | |
|
|
RV-2200 | 2” Female Thread Pressure Relief Valve Non-Adjustable Buna N Diaphragm | |
|
|
RV-2250 | 2” Female Thread Pressure Relief Valve Non-Adjustable High Temp. Diaphragm | |
|
|
RV-2300 | 2” Male Thread Pressure Relief Valve Adjustable Buna N Diaphragm | |
|
|

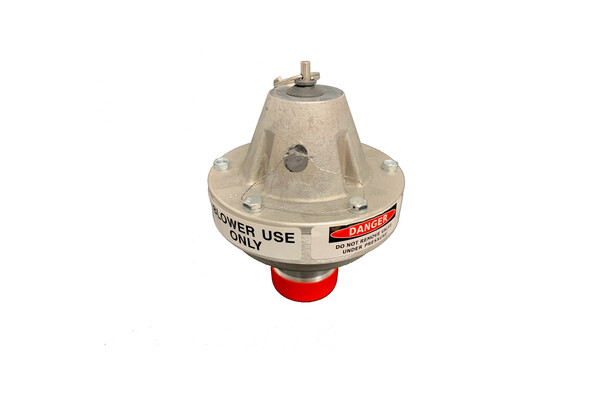

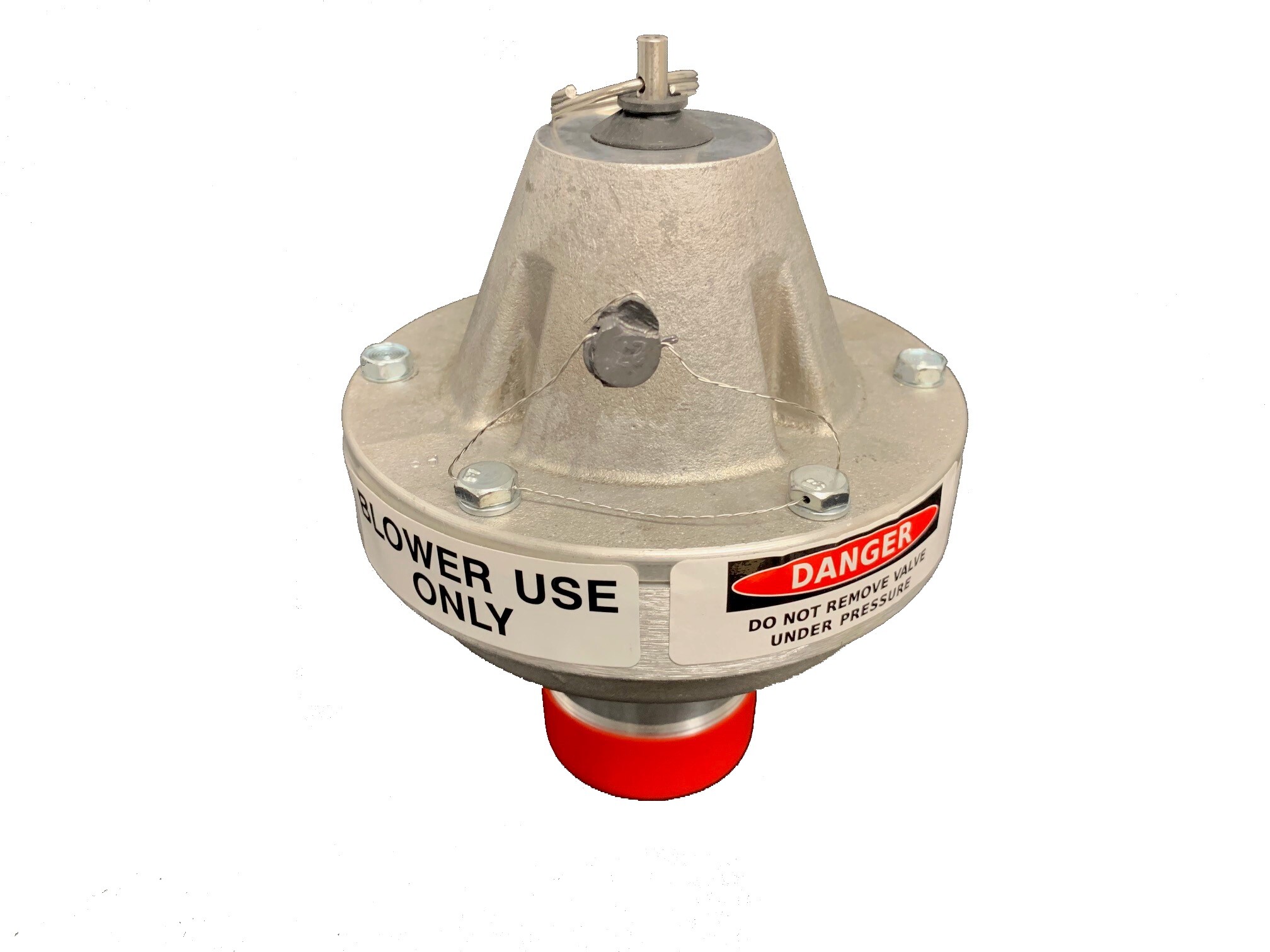

RV-2350 | 2” Male Thread Pressure Relief Valve Adjustable High Temp. Diaphragm | |
|
|
RV-2400 | 2” Male Thread Pressure Relief Valve Non-Adjustable Buna N Diaphragm | |
|
|
RV-2450 | 2” Male Thread Pressure Relief Valve Non-Adjustable High Temp. Diaphragm | |
|
|
RV-2500 | 2” Quick Cam Lock Pressure Relief Valve Adjustable Buna N Diaphragm | |
|
|
RV-2550 | 2” Quick Cam Lock Pressure Relief Valve Adjustable High Temp. Diaphragm | |
|
|
RV-2600 | 2” Quick Cam Lock Pressure Relief Valve Non-Adjustable Buna N Diaphragm | |
|
|
RV-2650 | 2” Quick Cam Lock Pressure Relief Valve Non-Adjustable High Temp. Diaphragm | |
|
|
RV-3100 | 3” Female Thread Pressure Relief Valve Adjustable Buna N Diaphragm | |
|
|
RV-3150 | 3” Female Thread Pressure Relief Valve Adjustable High Temp. Diaphragm | |
|
|
RV-3200 | 3” Female Thread Pressure Relief Valve Non-Adjustable Buna N Diaphragm | |
|
|
RV-3250 | 3” Female Thread Pressure Relief Valve Non-Adjustable High Temp. Diaphragm | |
|
|
RV2150 | 2” Female Thread Pressure Relief Valve Adjustable High Temp. Diaphragm |
