Manifold Air Control Boxes (pneumatic control)

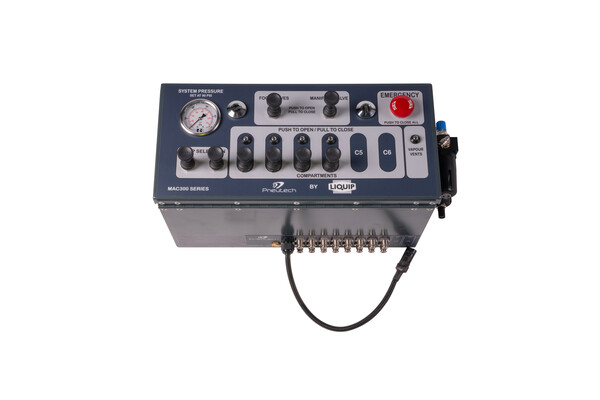

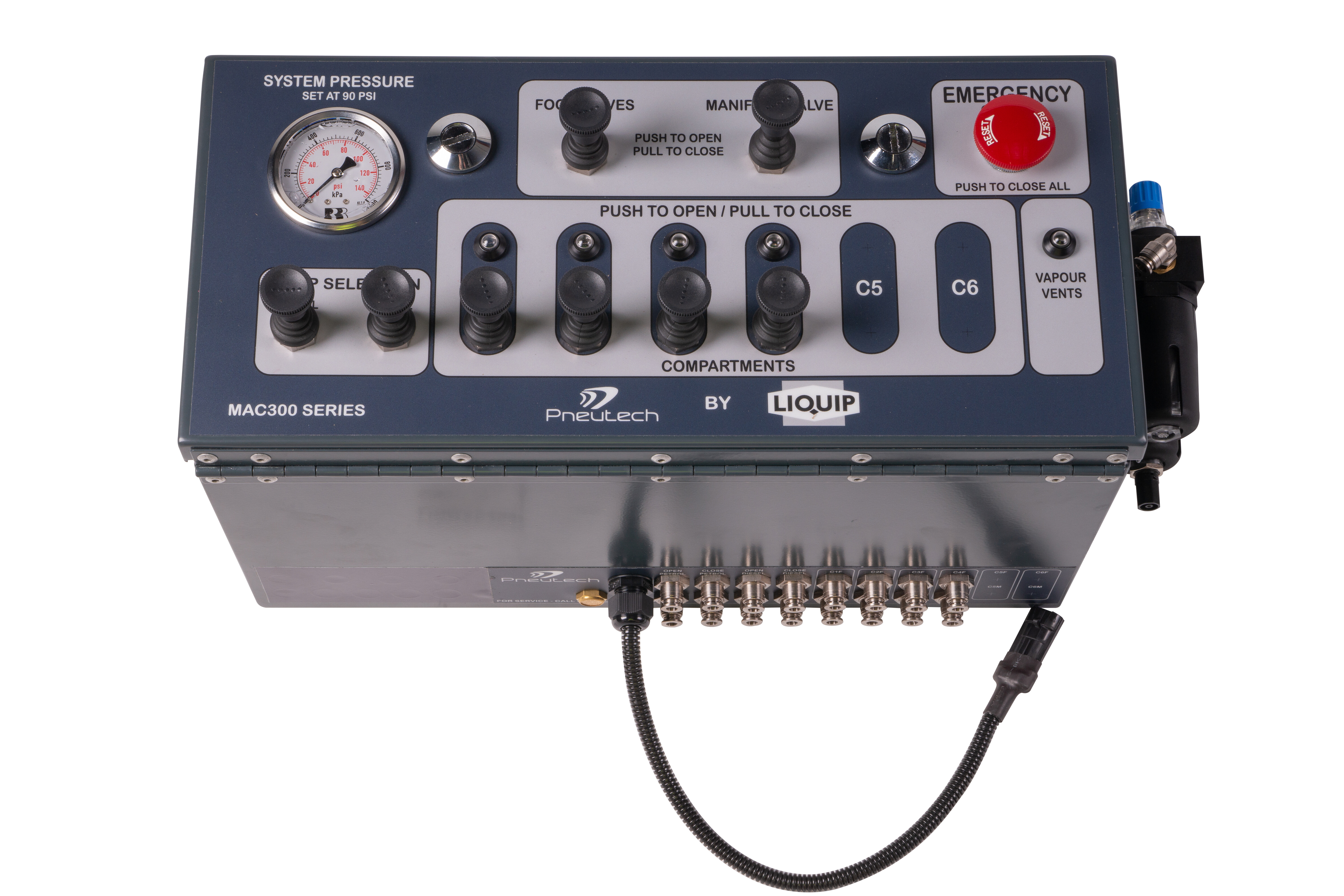

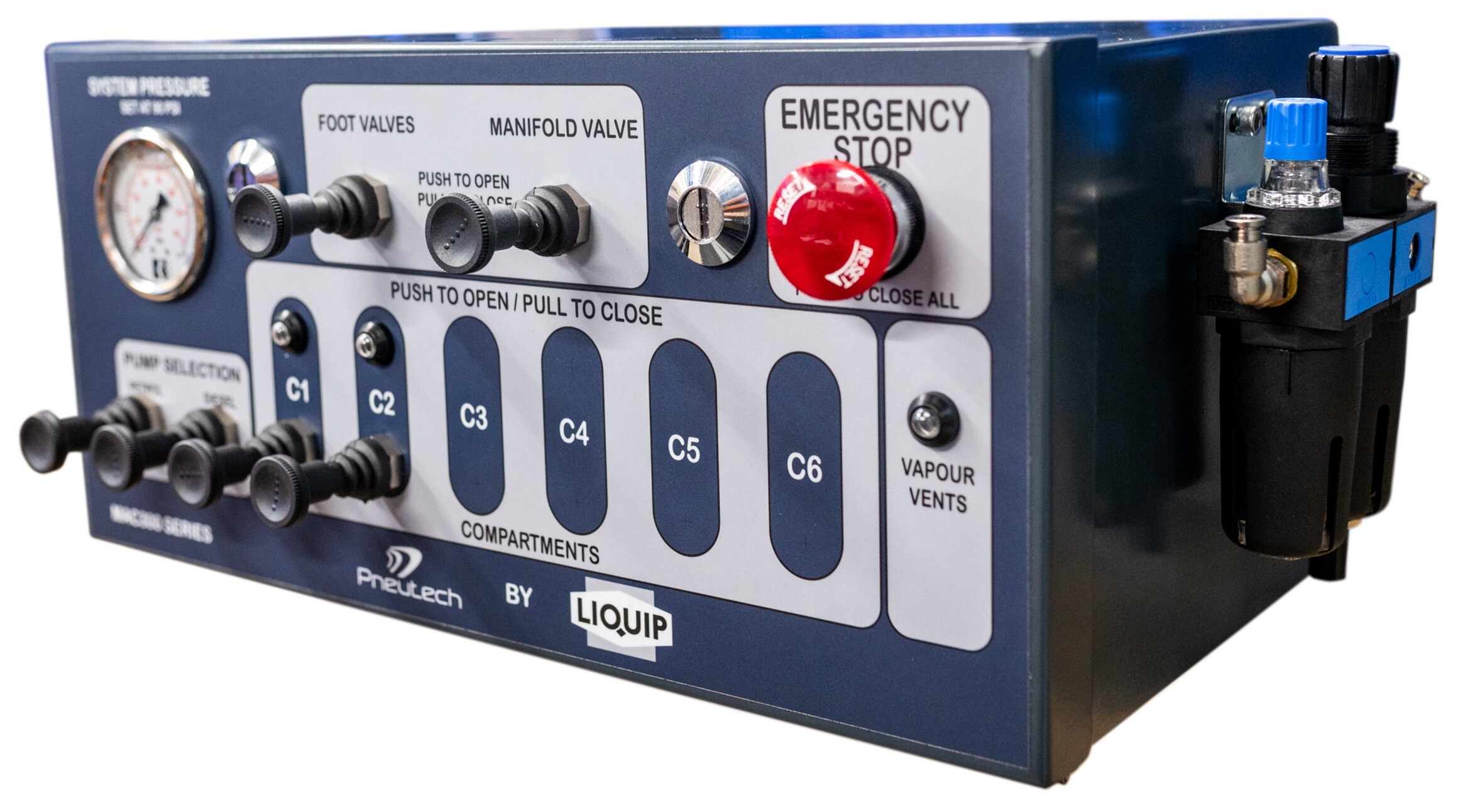

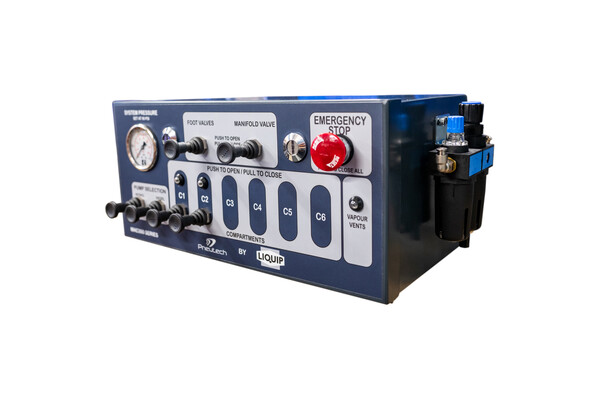

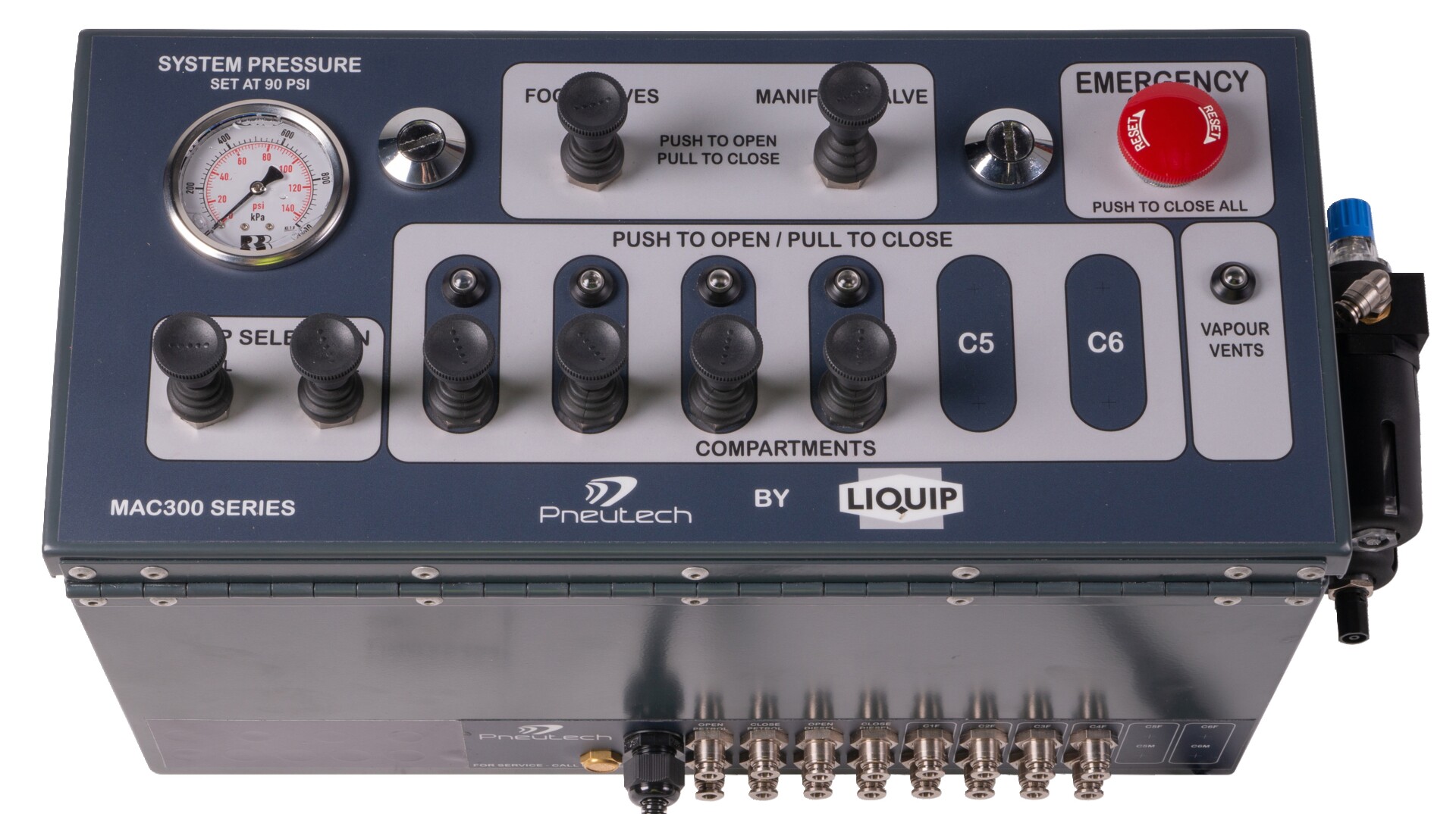

The MAC300 series of tanker manifold pneumatic control systems are available for 2 to 6 compartment systems and are incredibly simple to use.
The MAC300 series are lightweight air operated control systems that allow users to easily operate manifolds and valves. They also allow for simple and effective loading and unloading of compartment contents in either full or split delivery applications.
Liquip's pneumatic control boxes can also be used with Liquip's market leading Swift Delivery System (Swift-Mx series) refer to Metering and Gauging section.
Features & Benefits
- Manifold and air control.
- Stop manifold 'shandies'
- Simple installation - one box only, not two.
- Emergency stop integrated with truck system.
- Footvalve control with shuttle valves for footvalve built into the control box.
- 'Vapour vent open' pressure indicator.
- Overfill pressure switch with gold contacts.
- Colour coded pneumatics.
- Brake and Gate inputs supported.
- Powder-coated aluminium enclosure.
- Brake release signal input.

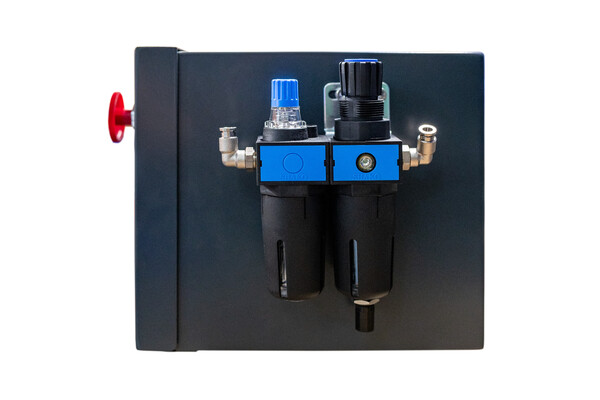

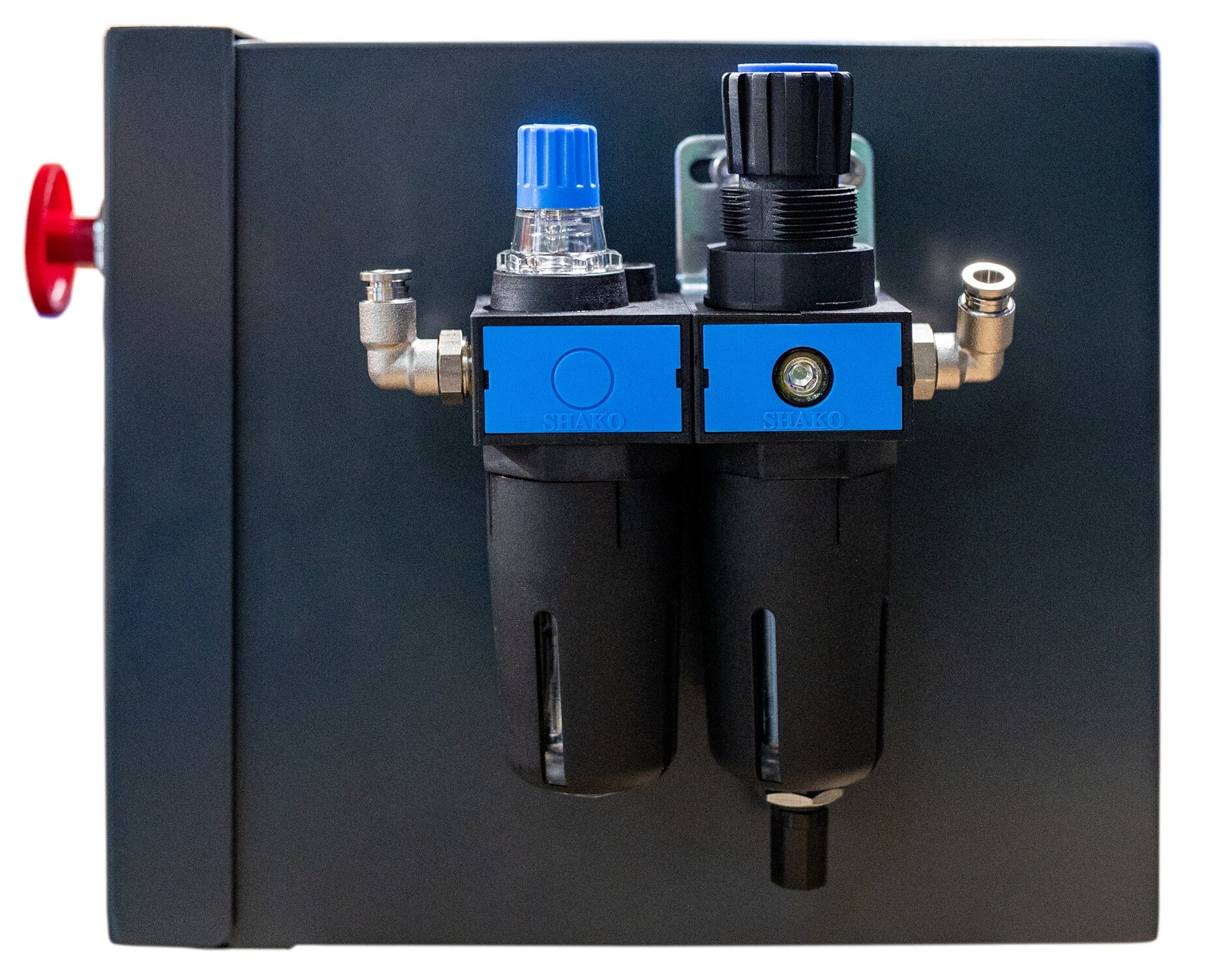

- Air regulator/water separator and lubricator fitted to enclosure.
- Supported by pneumatic experts.
- Lightweight and small physical footprint.
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
| MAC300 SERIES | |||
|
MAC302 | MANIFOLD AIR CONTROL 2 COMP - PETROL/ DIST PUMPING | |
|
|
MAC302SP | MANIFOLD AIR CONTROL 2 COMP SINGLE PUMP | |
|
|
MAC303SP | MANIFOLD AIR CONTROL 3 COMP SINGLE PUMP | |
|
MAC304 | MANIFOLD AIR CONTROL 4 COMP PETROL/DIST PUMPING | |
|
|
MAC304DOG | MANIFOLD AIR CONTROL 4 COMP DIESEL ONLY ON TRANSFER - DOG TRAILER | |
|
|
MAC304DUAL | MANIFOLD AIR CONTROL 4 COMP DUAL PRODUCT TRANSFER FROM DOG TRAILER | |
|
|
MAC304SP | MANIFOLD AIR CONTROL 4 COMP SINGLE PUMP | |
|
|
MAC305 | MANIFOLD AIR CONTROL 5 COMP PETROL/DIST PUMPING | |
|
|
MAC305DOG | MANIFOLD AIR CONTROL 5 COMP DIESEL ONLY ON TRANSFER - DOG TRAILER | |
|
|
MAC305DUAL | MANIFOLD AIR CONTROL 5 COMP DUAL PRODUCT TRANSFER FROM DOG TRAILER | |
|
|
MAC305SP | MANIFOLD AIR CONTROL 5 COMP SINGLE PUMP | |
|
|
MAC306 | MANIFOLD AIR CONTROL 6 COMP PETROL/DIST PUMPING | |
|
|
MAC306SP | MANIFOLD AIR CONTROL 6 COMP SINGLE PUMP | |
| SWIFT DELIVERY SYSTEM | |||
|
|
SWIFT-M2 | PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 2 COMPARTMENT | |
|
|
SWIFT-M3 | PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 3 COMPARTMENT | |
|
|
SWIFT-M4 | PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 3 COMPARTMENT | |
|
|
SWIFT-M5 | PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 4 COMPARTMENT | |
|
|
SWIFT-M6 | PNEUMATIC MANIFOLD CONTROL UNIT FOR SWIFT™ - 6 COMPARTMENT | |
|
|
SWIFT-MD2 | PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 2 COMPARTMENT | |
|
|
SWIFT-MD3 | PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 3 COMPARTMENT | |
|
|
SWIFT-MD4 | PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 4 COMPARTMENT | |
|
|
SWIFT-MD5 | PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 5 COMPARTMENT | |
|
|
SWIFT-MD6 | PNEUMATIC MANIFOLD CONTROL UNIT FOR [NON-PUMPED] SWIFT™ - 6 COMPARTMENT | |
