Overhead Arms
A new benchmark has been set for all bottom load arms through Liquip’s “bulletproof” overhead loading arms which provide effortless loading combined with safety, long service life and minimal maintenance.
Liquip’s 4” overhead bottom loading arms are capable of loading at flow rates of up to 2,500 litres per minute and are designed to enable complete cross-over within the API envelope of up to 6 arms in a single bay.

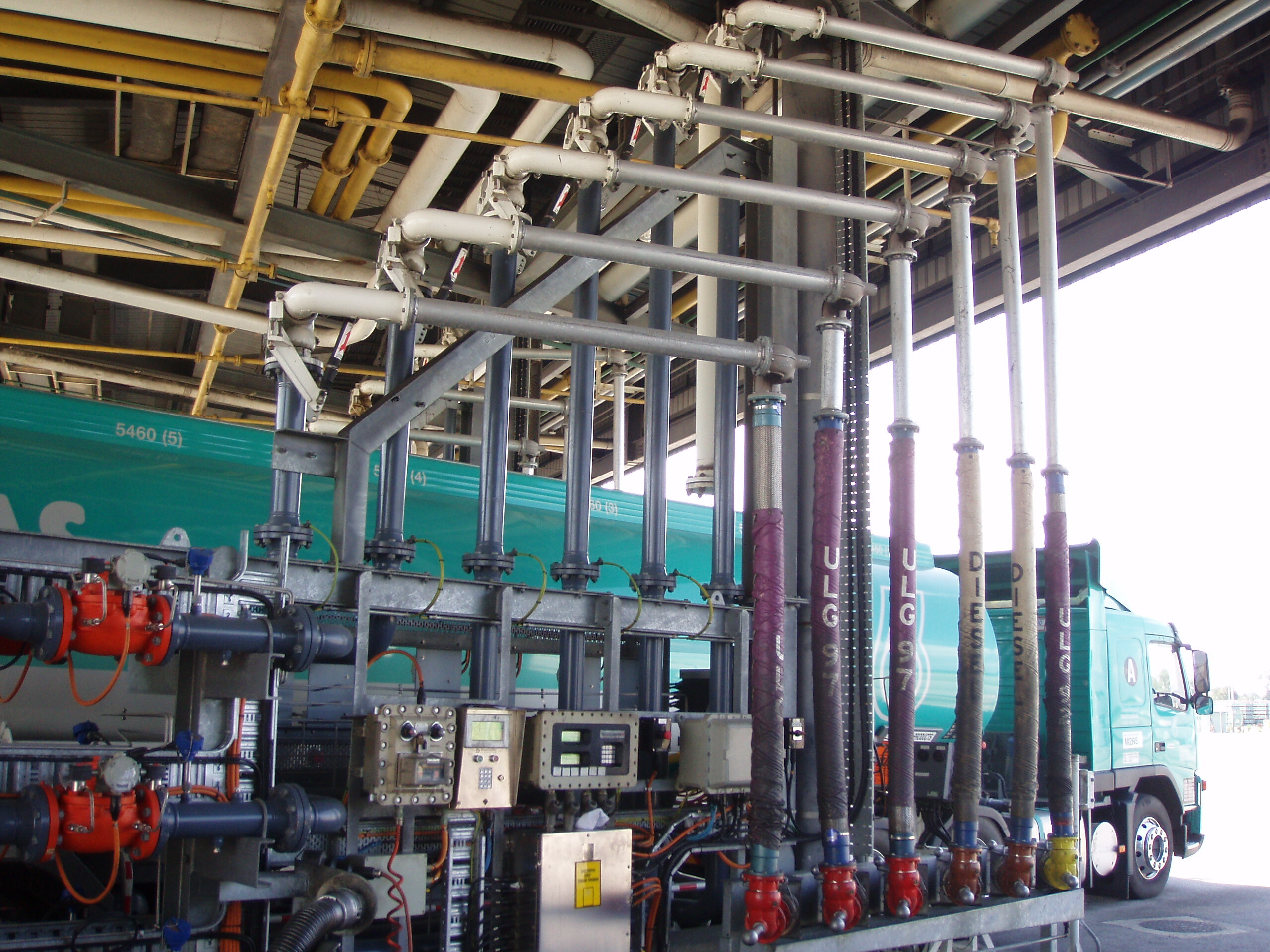

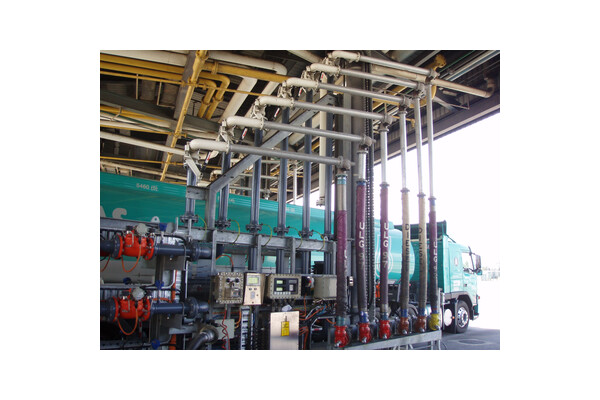

In regions where regulations permit, it is common to load using 3 or 4 arms at a time.
Liquip’s overhead bottom loading arms are fitted with a 2 metre standard length drop hose and varying loading arm heights are accommodated with aluminium or steel drop spools.
Standard length drop hoses enable easier changeover and reduced spare parts inventory for the operating company.
Liquip can also supply loading arm couplers that provide the connection between the tanker and loading arm that are compliant with API RP 1004.
- Easy to install loading arms for left hand, right hand, upward and downward configurations on site.
- Quick loading at flow rates of up to 2,500 LPM.
- Allows for cross over of multiple arms and simultaneous loading of compartments.
- Easily manoeuvre load arm within the API envelope.
- Meets API requirements and can be configurated for up to 6 arms in one bay with no need to move tankers to load all compartments.

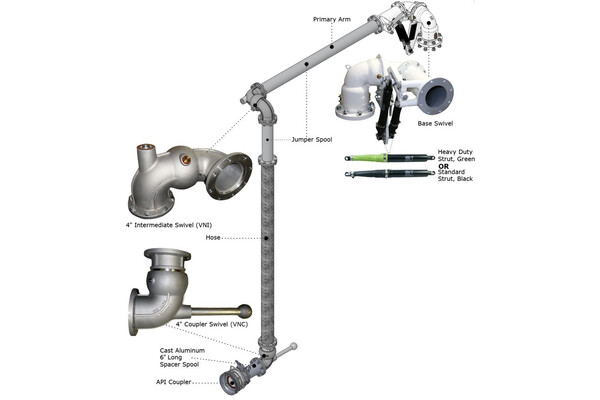

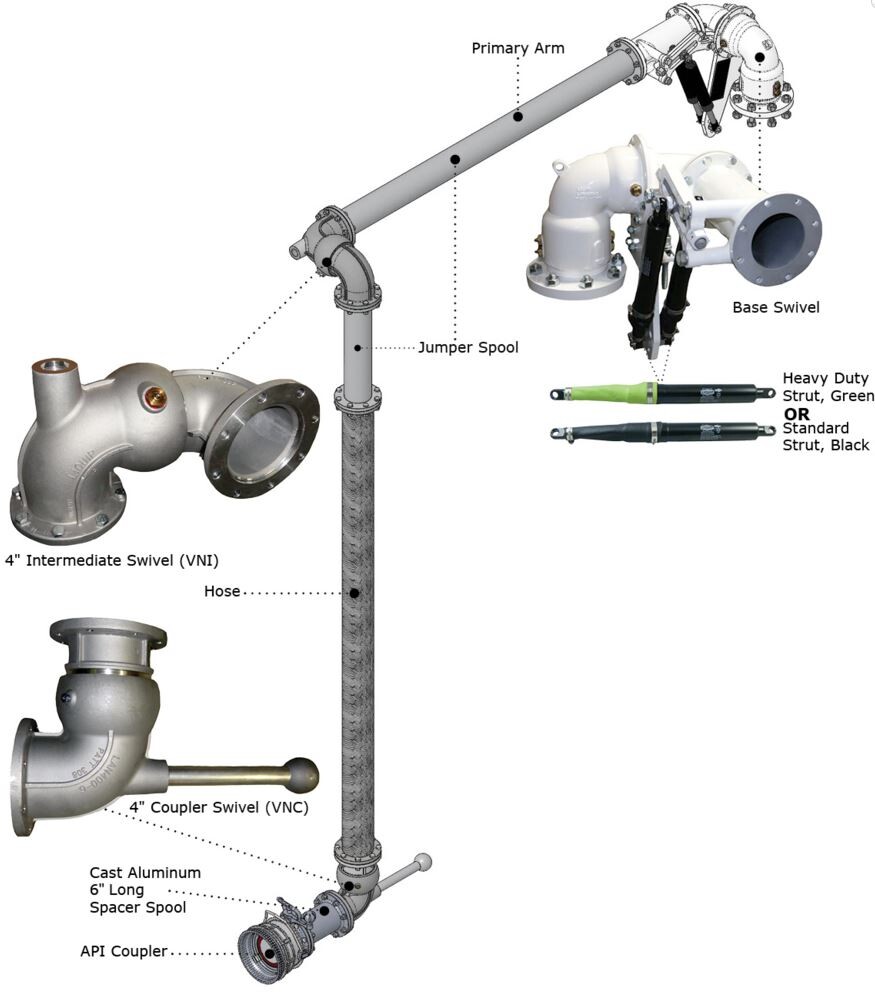

- Superior safety through the use of Liquip’s unique balance assembly swivel design.
- Simple and safe to adjust & replace.
- Can be supplied to suit a range of products including various chemicals and aviation fuel.
- Balance mechanism is greased for life.
- Uses Liquip’s unique gas strut “Velvet Touch“ technology for smooth operation over entire stroke of the loading arm
- A range of other balance mechanisms options available e.g. torsion spring etc.
- Standard length S/S heavy duty drop hose for all arms - reducing site spares inventory.
- Exceptional durability and minimal servicing requirements thanks to the best-in-class base swivel assembly and overall design
- Simple loading arm adjustment.
