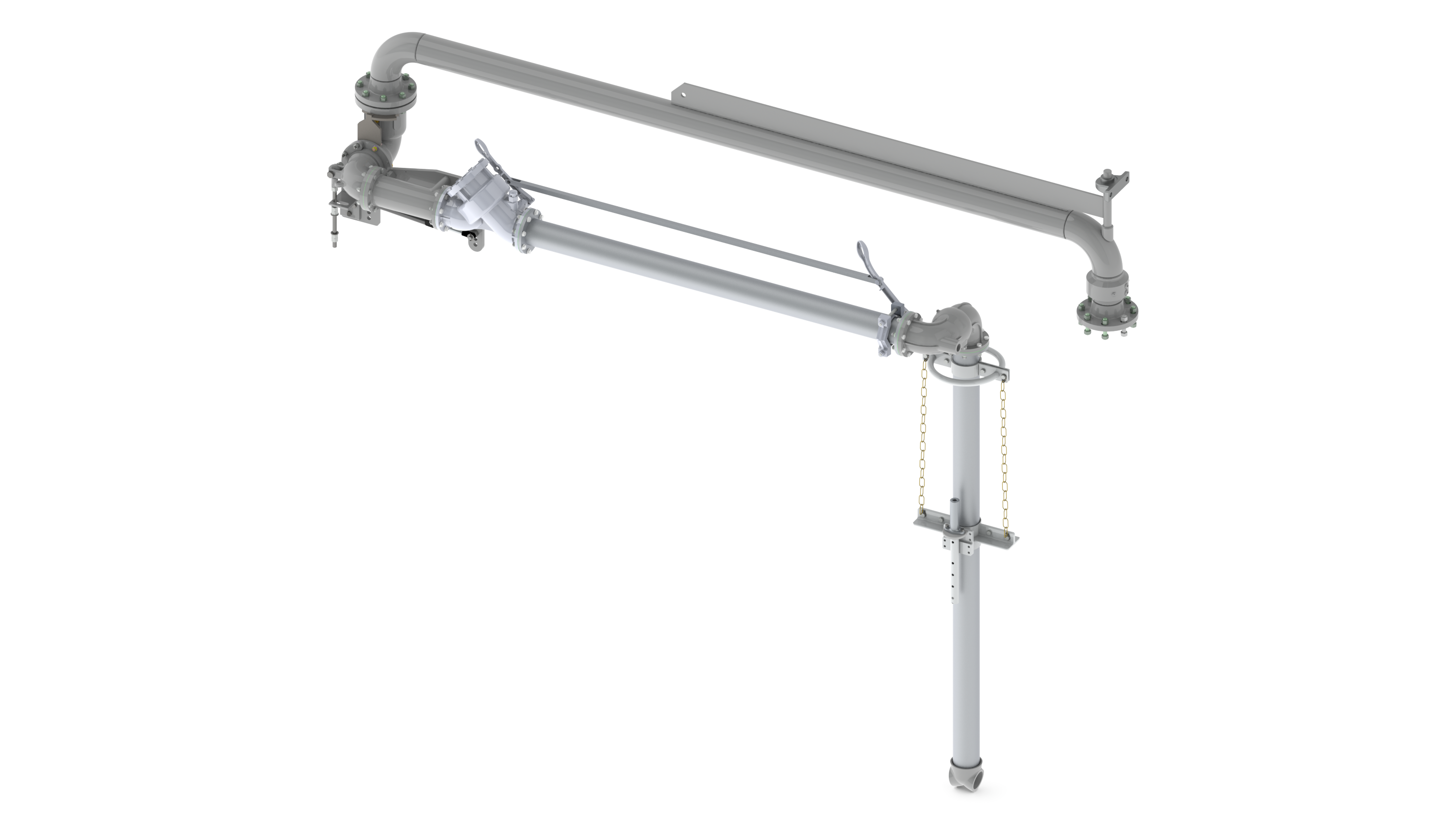

Long Reach Boom Style Top Loading Arms
Top loading provides an efficient and cost effective way to load in many situations and is still a prominent method of loading throughout many different countries.

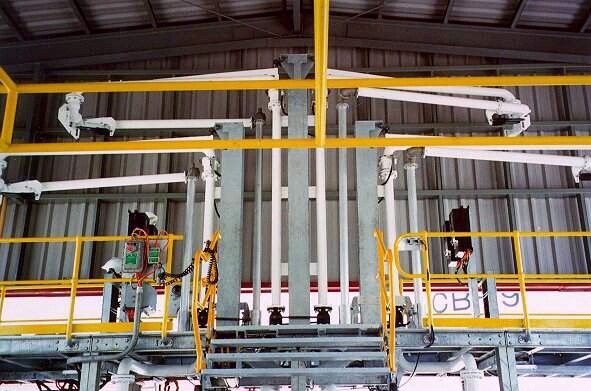

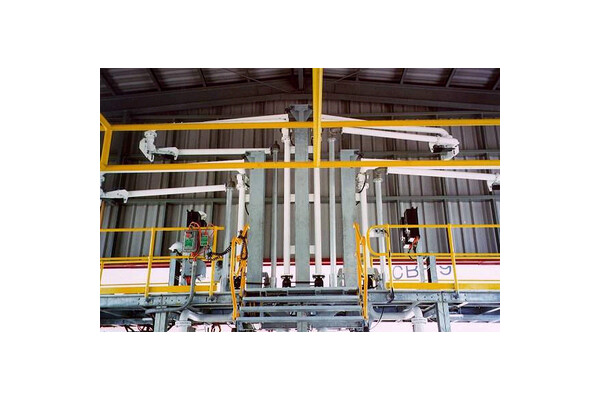

Liquip’s long reach boom style top loading arms are our most versatile top loading arms, commonly used in rail car and tanker applications. They provide an efficient and cost effective method to load all compartments of a typical road tanker without the need to reposition the tanker. They are suitable for variable reach applications and can easily load tanks on either side the gantry.
Liquip can supply vapour cones as an optional extra for hydrocarbons applications, allowing operators to recover vapour and limit environmental impacts.
- Unique boom style design allows for loading both sides of the gantry.
- Long reach top loading arms allow for full cross-over capability and a horizontal reach of up to 5,500mm.
- Designed to provide long reach operation whilst being easy to operate/manoeuvre.
- Heavy Duty durable design allows for a range of accessories to be included in designs if required eg. Loading valves, Vapour cones,
- Overfill probe holders and rotation limiters.
- Scissor back design means convenient and compact storage and no wasted space.
- Each Boom style top loading arm is designed to maximise reach and weight capabilities.
- Choice of flanged or welded construction.
- Flow rates typically up to 1,500 LPM.
- A special high load base swivel can be supplied as required for longer ‘wet’ arms.
- Suitable for rail or tanker loading.
- Uses Liquip’s unique gas strut “Velvet Touch“ technology.
- Custom designs are available to suit individual loading applications and configurations.
