Vapour Recovery Arms

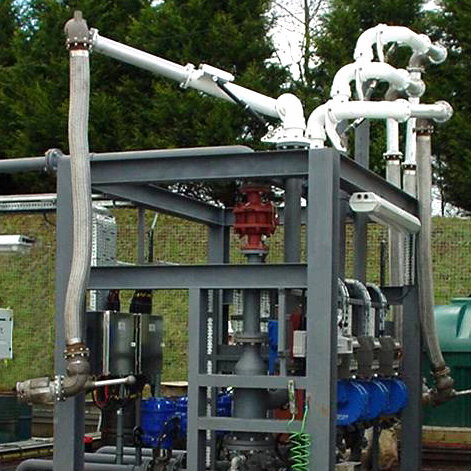

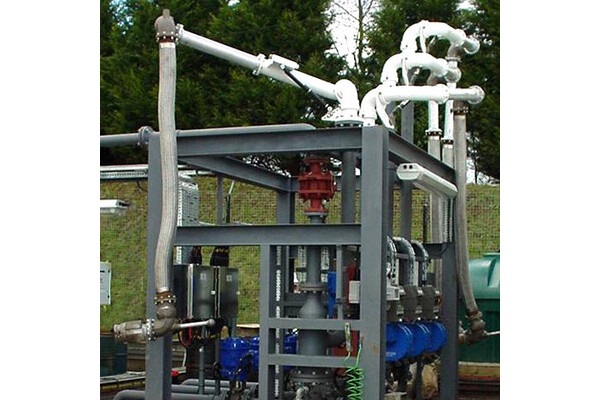

The Liquip Vapour Recovery Arm provides a safe and efficient method of vapour collection during loading.

Vapour recovery arms are fitted with a low pressure drop vapour coupler which allows for vapour recovery during multiple compartment loading.

Features & Benefits
  • A safe, fast and cleaner method for vapour recovery.
  • Removes the potential safety risk of vapour hoses on loading bay floors.
  • Eliminates the need for costly hoses replacements.
  • Vapour loading arms are available in all bottom loading configurations.
  • Uses Liquip's unique gas strut "Velvet Touch" technology.

Recommended products for replacement

Categories
Technical Information

Counter balance type
Single or Dual gas struts..

Range of motion
Horizontal 360°, Vertical +15° to -15°.

Mounting connections
4” Class 150 ANSI RF flange.

Pressure Ratings
Working Pressure: 1,000 kPa,(not including coupler).
Test Pressure: 1,500 kPa (not including coupler).
Maximum coupling pressure: 500 kPa working.

Temperature limits
-10°C to + 60°C.

Primary seal materials
Viton B70 or GFLT.

Dust seal material
Buna Nitrile or HAN.

Gasket material
Klingersil or Viton A.

Ordering Information

Contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

Associated Equipment

Vapour recovery loading components

  • Balance assembly.
  • Gas struts.
  • Straight swivels.
  • Intermediate swivels.
  • Coupler swivels.
  • Vapour couplers.
  • Drop hoses & covers.
  • Butterfly valves.
  • Sightglasses.
  • Spools.
  • Riser pipes.
  • Parking adaptor e.g. VCFPA.
